QuikVu Console – Pressure, Depth & Compass
QuikVu Consoles are compact, lightweight, and have attachment points on both sides. The thin, braided HP hose is lighter weight and more flexible than a traditional rubber hose.

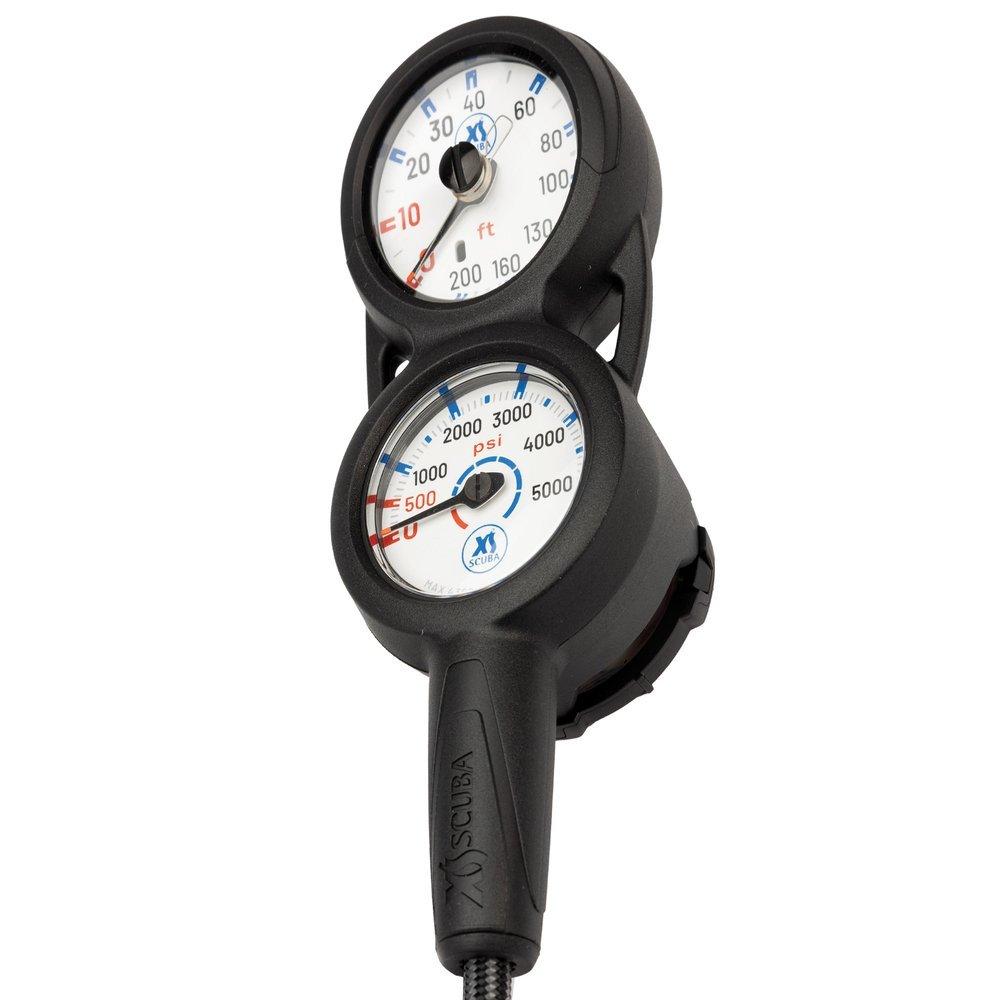

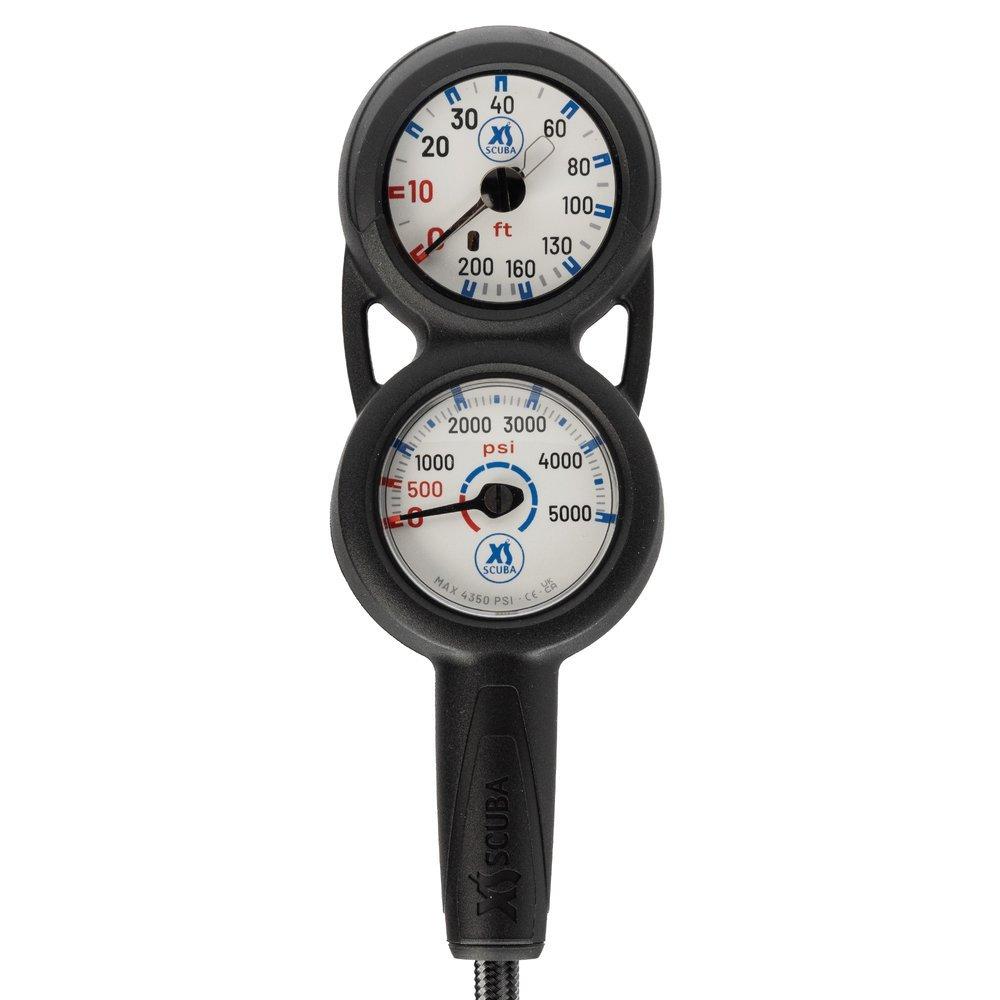

Front Side

Depth Gauge (p/n GP31, GP31M)

Depth gauge scale is 0 to 200 ft (0 to 60 m)

Includes a maximum depth indicator needle

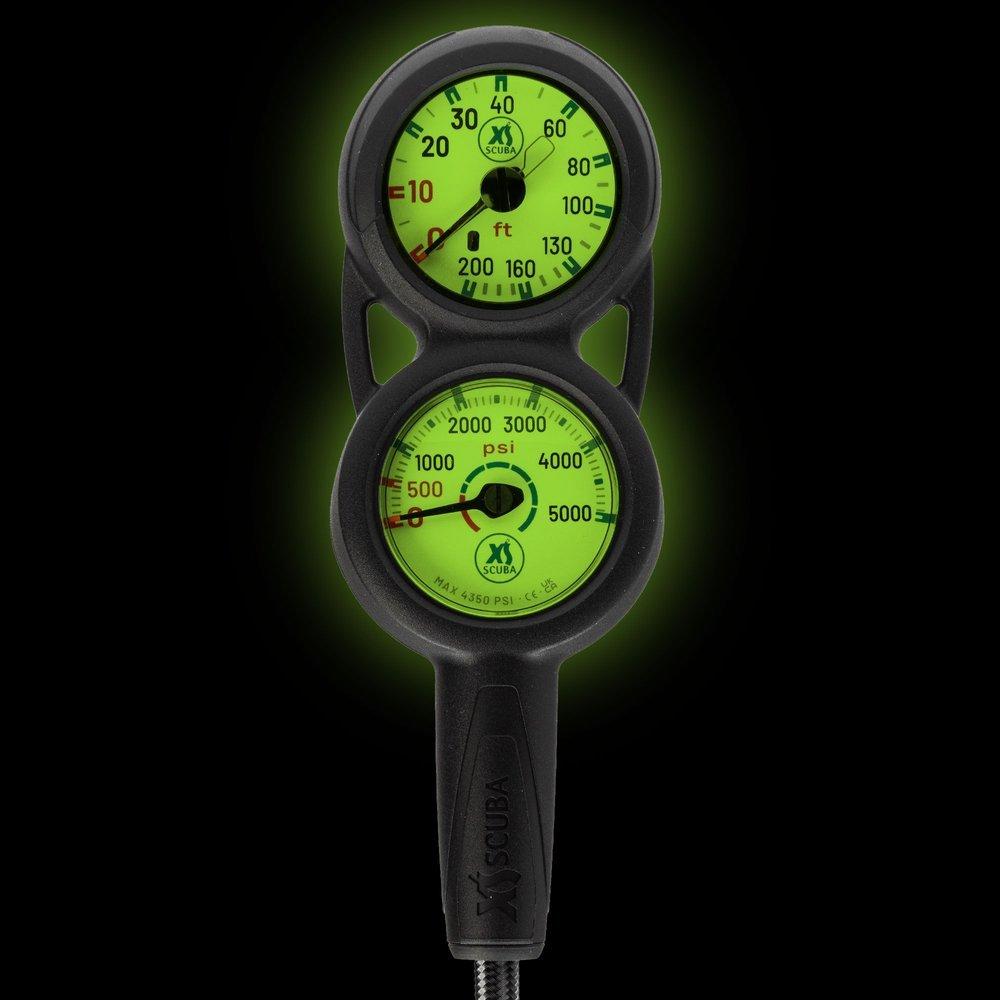

Luminescent gauge face

Glass-filled nylon housing with shatterproof lens

Pressure Gauge (p/n GP28, GP28M)

Pressure gauge scale is 0 to 5000 psi (0 to 400 bar)

The Beryllium-Copper spiral-wound coil ensures greater reliability and compactness

Bourdon Tube design provides accurate measurements under depth

Luminescent gauge face

Back Side

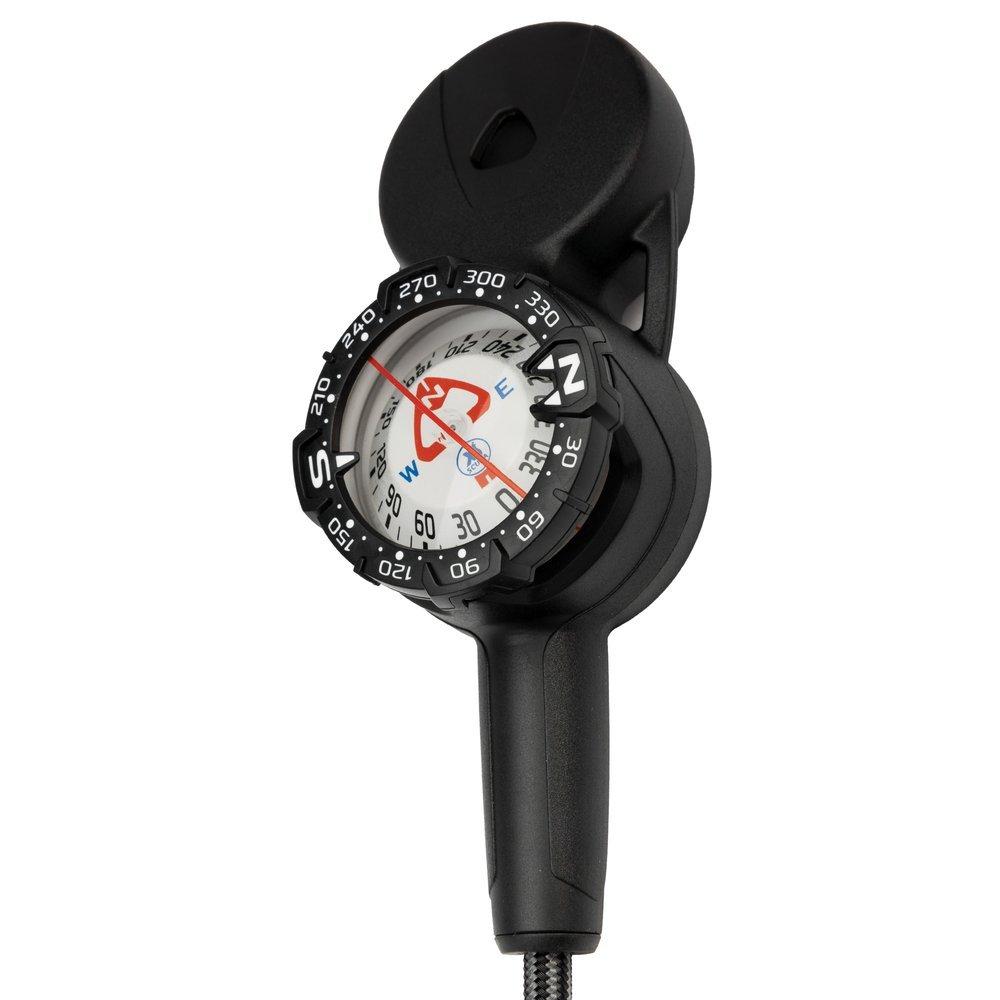

Compass (p/n GP40)

Large gun sight style viewing window allows for easy and accurate navigation

Compasses have strong magnets to guarantee accuracy and quick response times

Reads accurately over a wide tilt range

The luminescent dial rests on a precision sapphire jewel

Large, secure 360° ratcheting bezel

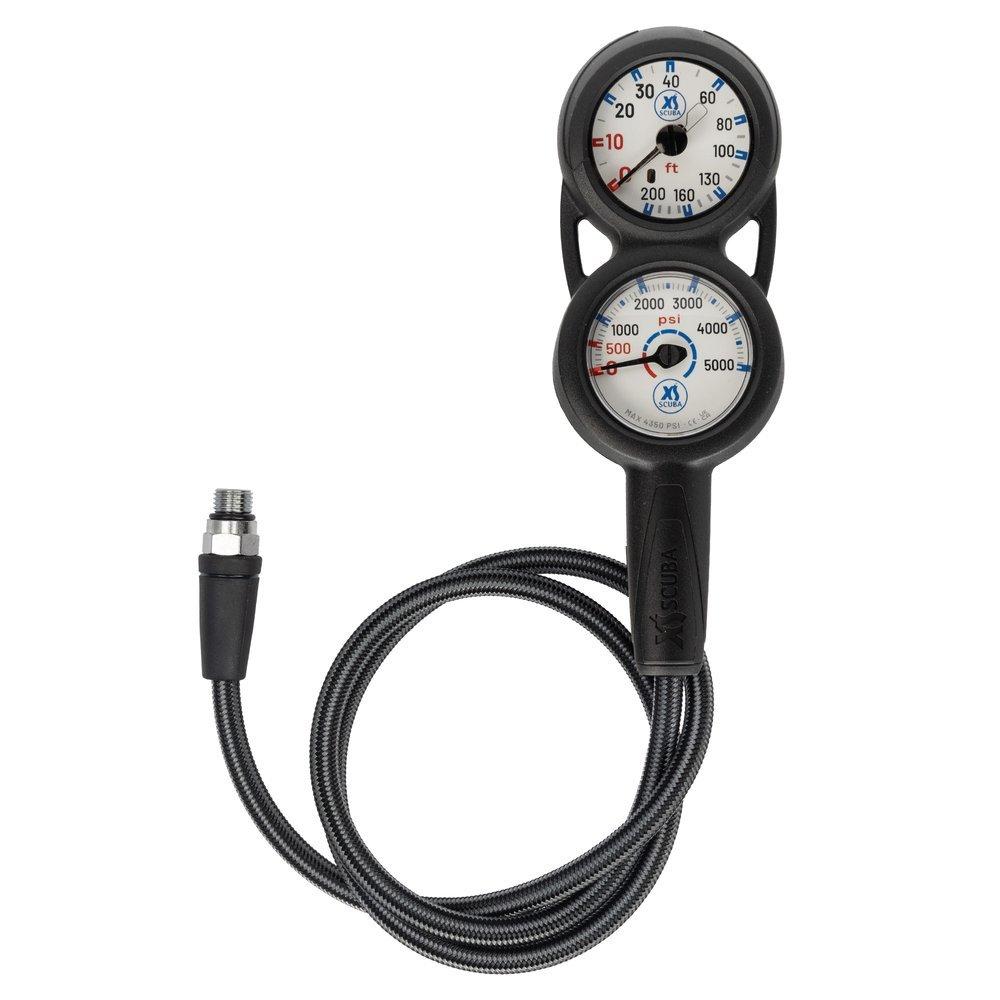

Includes 32 in (81 cm) braided HP hose

CE 0598:EN 250 and UKCA 0120:EN250 certified

p/n
GA310 (Imperial)
GA310M (Metric)
