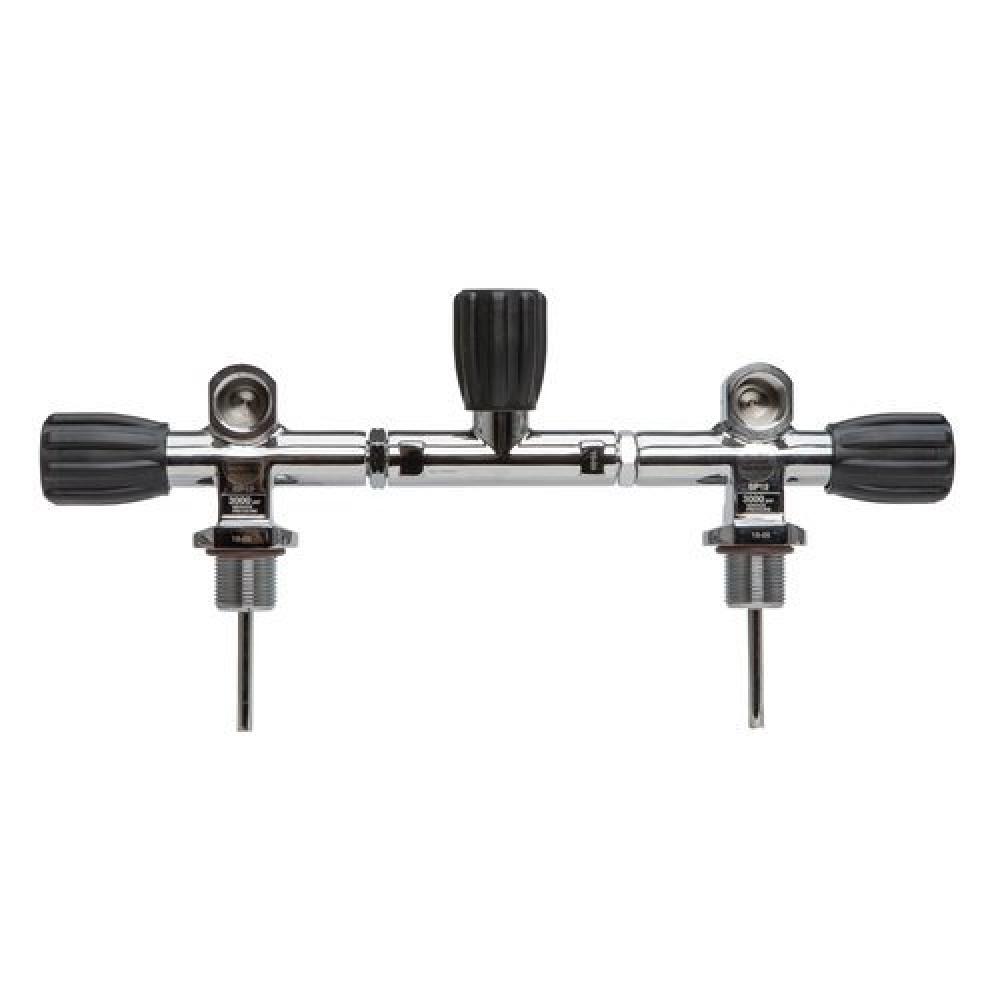

Thermo Manifold-DIN 3442 psi

Thermo Isolation Manifold - DIN

• DIN - Dedicated 300 bar

• Center-to-center distance: 215 mm (8.46”) +/- 5 mm (0.2”)

• 3/4”-14 NPSM standard inlet threads

• High gas flow for optimum regulator performance

• On/Off seat built from high strength brass with nylon seat and teflon plated for years of smooth operation

• One-piece safety assembly protected within the body of the valve

• Traditional copper crush washer sealed bonnet

• Modular access plugs (R/L) included for use as single valves

• Screw-in dip tube with hex tighten feature

• Meets the requirements of CGA V9-2009 standards
